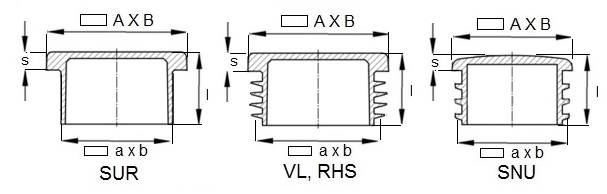

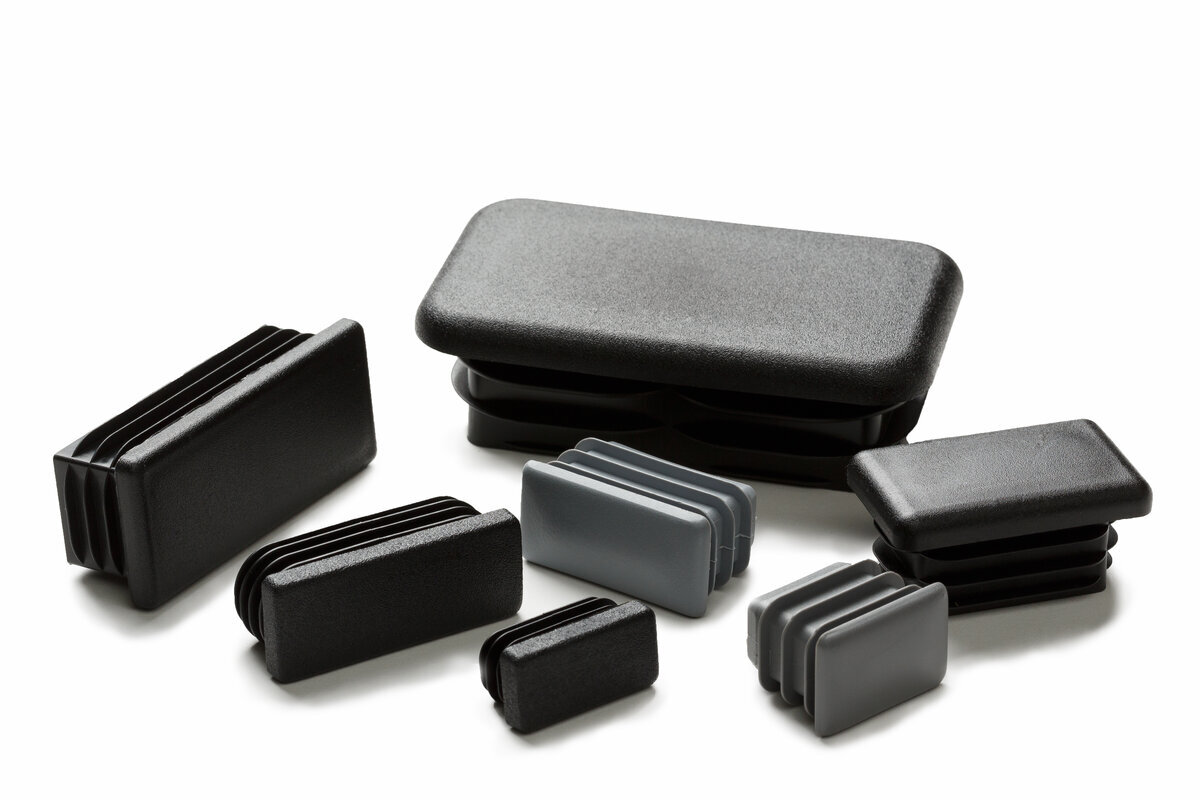

Päätytulpat suorakaiteet
| # |
Nimike |
A x B |
a |
b |
s |
l |
Vakiovärit |
Kuva |
|
Lisätiedot |
| 1 |
VL 20x10x0,8-2 |
20 x 10 |
16-18.4 |
6-8.4 |
3 |
15 |
MU |
0.09 |
|
|
|
|
| 2 |
VL 25x15x0,8-2,5 |
25 x 15 |
20-23.4 |
10-13.4 |
5 |
17 |
MU |
0.14 |
|
|
|
|
| 3 |
SUR 30x15x1.5 |
30 x 15 |
27 |
12 |
4 |
18 |
MU, VA, HA |
0.14 |
|
|
|
|
| 4 |
VL 30x15x0.8-2.5 |
30 x 15 |
25-28.4 |
10-13.4 |
5 |
17 |
MU |
0.16 |
|
|
|
|
| 5 |
SNU 30x20x0.8-2 |
30 x 20 |
26-28.4 |
16-18.4 |
5 |
25 |
MU, HA, PY |
0.16 |
|
|
|
|
| 6 |
VL 30x20x1-3 |
30 x 20 |
24-28 |
14-18 |
5 |
17 |
MU |
0.22 |
|
|
|
|
| 7 |
SUR 40x20x1.5 |
40 x 20 |
37 |
17 |
4 |
23 |
VA, HA |
0.12 |
|
|
|
|
| 8 |
VL 40x20x1-2 |
40 x 20 |
36-38 |
16-18 |
5 |
17 |
MU |
0.22 |
|
|
|
|
| 9 |
SUR 40x20x2 |
40 x 20 |
36 |
16 |
4 |
23 |
MU |
0.12 |
|
|
|
|
| 10 |
SNU 40x20x1-2 |
40 x 20 |
36-38 |
16-18 |
5 |
25 |
MU, HA |
0.18 |
|
|
|
|
| 11 |
VL 40x25x1-3 |
40 x 25 |
34-38 |
19-23 |
5 |
17 |
MU |
0.28 |
|
|
|
|
| 12 |
VL 40x30x1-3 |
40 x 30 |
34-38 |
24-28 |
5 |
17 |
MU |
0.30 |
|
|
|
|
| 13 |
VL 50x20x1-3 |
50 x 20 |
44-48 |
14-18 |
5 |
20 |
MU |
0.22 |
|
|
|
|
| 14 |
VL 50x25x1.5-2.5 |
50 x 25 |
45-47 |
20-22 |
5 |
20 |
MU |
0.30 |
|
|
|
|
| 15 |
VL 50x30x1.5-2.5 |
50 x 30 |
45-47 |
25-27 |
5 |
20 |
MU |
0.35 |
|
|
|
|
| 16 |
RHS 50x30x2.6-3.2 |
50 x 30 |
43.6-44.8 |
23.6-24.8 |
7 |
24 |
MU |
0.77 |
|
|
|
|
| 17 |
SUR 60x30x2 |
60 x 30 |
56 |
26 |
3 |
16 |
HA |
0.30 |
|
|
|
|
| 18 |
VL 60x30x1,5-2,5 |
60 x 30 |
55-57 |
25-27 |
5 |
20 |
MU |
0.32 |
|
|
|
|
| 19 |
VL 60x40x1-3 |
60 x 40 |
54-58 |
34-38 |
5 |
20 |
MU |
0.45 |
|
|
|
|
| 20 |
RHS 60x40x3.2-4 |
60 x 40 |
52-53.6 |
32-33.6 |
7 |
26 |
MU |
1.70 |
|
|
|
|
| 21 |
VL 70x30x1.5-2.5 |
70 x 30 |
65-67 |
25-27 |
5 |
26 |
MU |
0.60 |
|
|
|
|
| 22 |
VL 70x50x2-4 |
70 x 50 |
62-66 |
42-44 |
5 |
20 |
MU |
0.98 |
|
|
|
|
| 23 |
VL 80x30x1-2.5 |
80 x 30 |
75-78 |
25-28 |
5 |
20 |
MU |
0.93 |
|
|
|
|
| 24 |
VL 80x40x1-3 |
80 x 40 |
74-78 |
34-38 |
5 |
20 |
MU |
0.92 |
|
|
|
|
| 25 |
RHS 80x40x3,2-5 |
80 x 40 |
70-73.6 |
30-33.6 |
8.5 |
27 |
MU |
1.75 |
|
|
|
|
| 26 |
VL 80x60x1.5-4.5 |
80 x 60 |
71-77 |
51-57 |
5 |
29 |
MU |
1.72 |
|
|
|
|
| 27 |
VL 100x40x1.5-3.5 |
100 x 40 |
93-97 |
33-37 |
5 |
20 |
MU |
1.50 |
|
|
|
|
| 28 |
VL 100x50x2-3 |
100 x 50 |
94-96 |
44-46 |
5 |
30 |
MU |
1.70 |
|
|
|
|
| 29 |
RHS 100x50x3.2-5 |
100 x 50 |
90-93.6 |
40-43.6 |
6 |
30 |
MU |
1.70 |
|
|
|
|
| 30 |
VL 100x60x2.5-4.5 |
100 x 60 |
91-95 |
51-55 |
5 |
30 |
MU |
1.70 |
|
|
|
|
| 31 |
RHS 100x60x5-8 |
100 x 60 |
84-90 |
44-50 |
7 |
32 |
MU |
4.60 |
|
|
|
|
| 32 |
VL 110x70x3-5 |
110 x 70 |
100-104 |
60-64 |
6 |
30 |
MU |
4.50 |
|
|
|
|
| 33 |
VL 120x80x2-5,5 |
120 x 80 |
109-116 |
69-76 |
6 |
30 |
MU |
3.04 |
|
|
|
|
| 34 |
RHS 150x50x2-6 |
150 x 50 |
138-146 |
38-46 |
6 |
33 |
MU |
4.70 |
|
|
|
|
| 35 |
RHS 150x100x3-8 |
150 x 100 |
134-144 |
84-94 |
7 |
35 |
MU |
6.10 |
|
|
|
|
MU = musta
VA = valkoinen
HA = harmaa, lähinnä RAL7046
